DIY Permanent Outdoor Lighting Kit – 30mm RGBW
Price range: $1,200.00 through $3,600.00
If you prefer a brighter glow that lights up the walls of your house, our 30mm RGBW permanent outdoor light kits are perfect for you. Choose from colorful holiday lighting or dedicated warm white LEDs for everyday accent lighting. Kits include everything you need to install permanent lights yourself: controller, LEDs, aluminum channel, cables, and more. Just add screws to mount them to your house.
RGBW Permanent Outdoor Lights
Wall-washing glow, real warm white, and endless color options for year-round use.
Our 30mm RGBW Permanent Outdoor Lights are built for homeowners who want more than just holiday colors. With a true warm white (3000K) channel and larger, brighter LEDs, these lights double as accent lighting, security lighting, and permanent holiday lighting in one system.
At ~85 lumens per pixel, the 30mm LEDs are nearly seven times brighter than our 12mm bulbs, focusing light onto your walls for a striking glow effect. From the street, you’ll still see the same clean bulb look — but your home will also shine with dramatic color and light.
Each kit includes everything in one box: LEDs, aluminum channel, controller, wiring, and cables. Installation is straightforward with basic tools, and our ShawTech mobile app makes it easy to customize colors, patterns, and schedules right from your phone.
Cover up to 300 feet of your home per kit, with the flexibility to expand with additional controllers as needed. Whether you want festive holiday displays or warm white accent lighting year-round, Permanent Outdoor Lights give your home both style and function.
Want a classic look? See our 12mm RGB Permanent Christmas Lighting Kits
Kit Contents
Everything you need in one box, ready to install.
- Controller with power supply
- LEDs strands
- Aluminum Channel
- Corner & End Caps
- Cables (power injection + jumps jumpers)
- Wiring supplies
- Detailed written & video instructionsNote: Screws and basic tools are not included.
LED Specs
Bright, long-lasting, and built for any weather.
- Pixel Size: 30mm
- Voltage: 24V
- Spacing: 9 inches
- LED Type: 6-diode RGBW (3000K warm white)
- Brightness: ~85 lumens per pixel
- Lifespan: 50,000 Hours
- Temperature Range: -40°C to 65°C
- Waterproof Rating: IP68
Controller Specs
Easy to control with Wi-Fi and full customization.
- Control Length: Up to 300ft per controller
- Outputs: 2
- Max Length per Output: 150ft
- Connectivity: Wi-Fi with cloud control through the ShawTech mobile app.
- Software: Preloaded with ShawTech firmware, with ongoing updates and new features shaped by customer feedback.
- Expandability: Can pair multiple controllers if needed
- Enclosure: Designed for indoor or sheltered outdoor use (keep out of direct sun, rain, and snow).
LED Channel Specs
Durable aluminum track for a clean, professional finish.
- Material: Powder coated aluminum
- Dimensions: 1.57" W x 0.79" H x 36" L

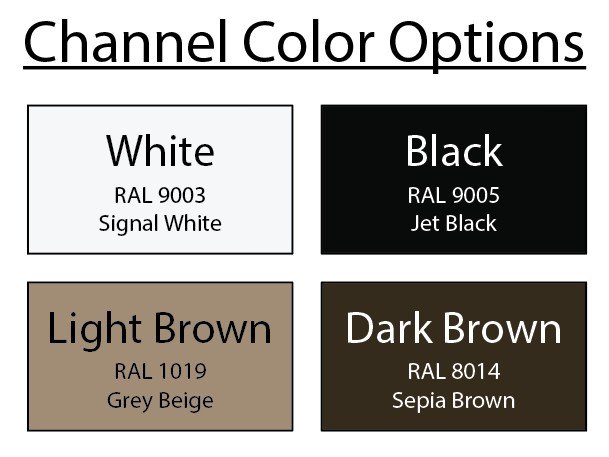

- Colors:
- White (RAL 9003)

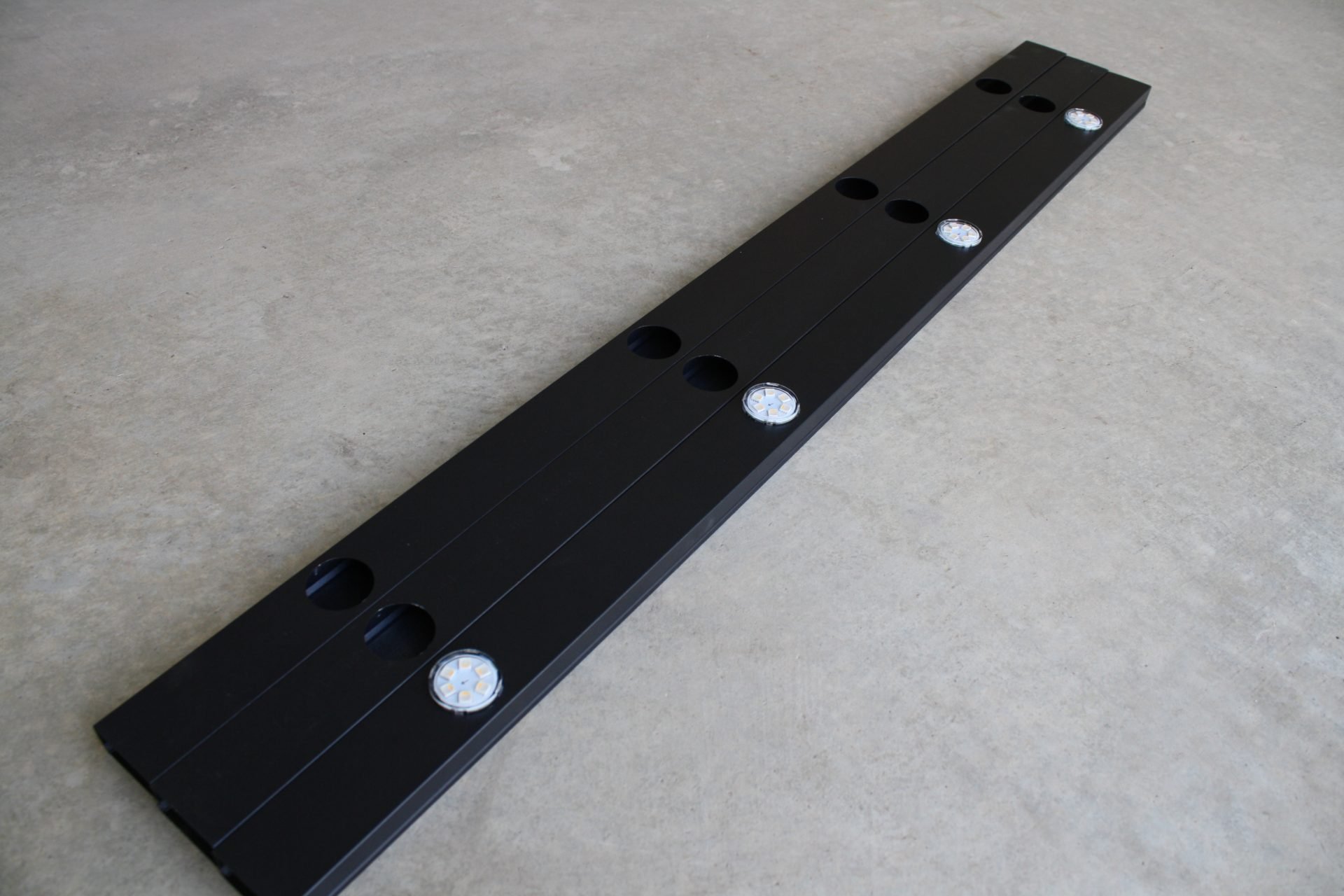

- Black (RAL 9005)

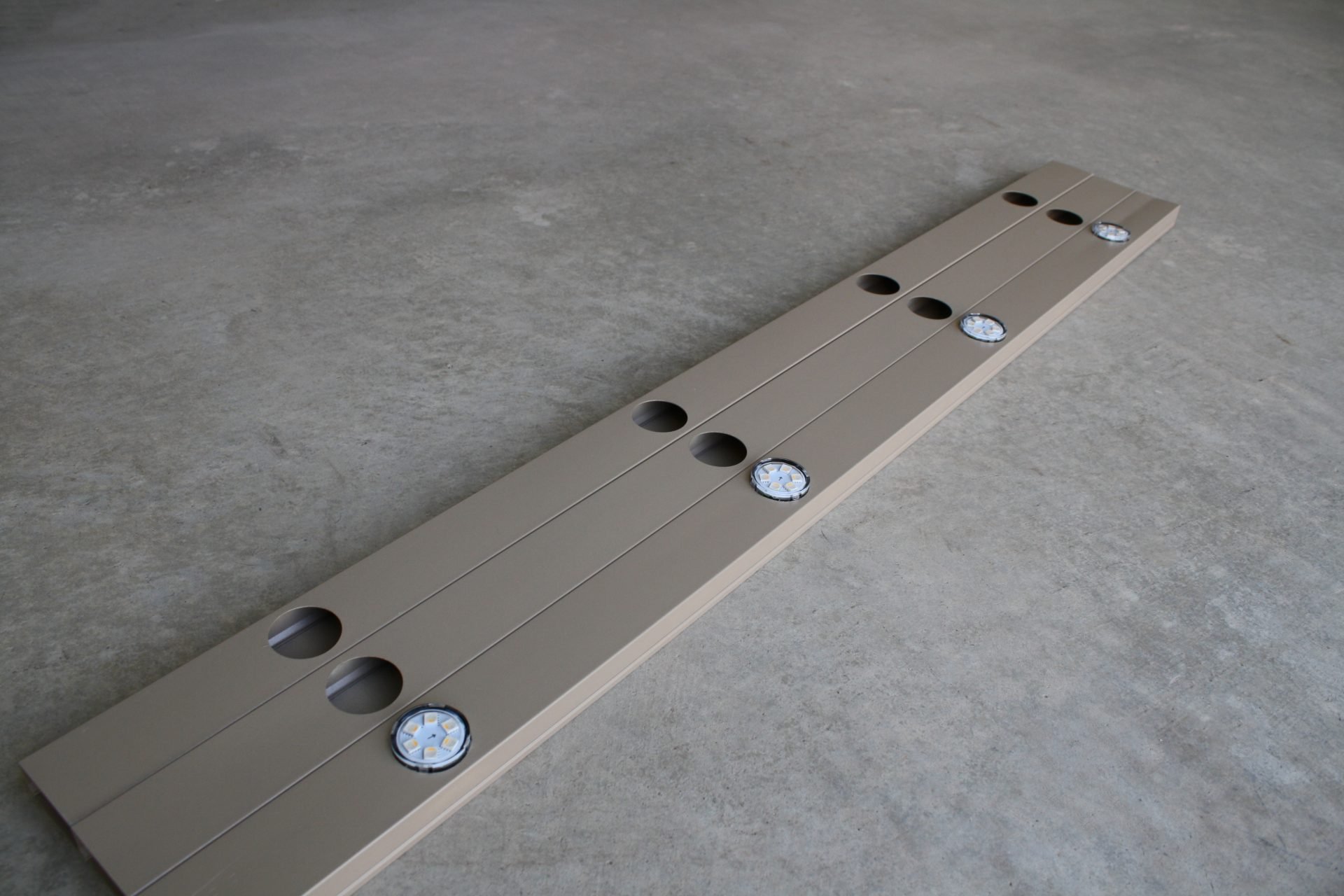

- Light Brown (RAL 1019)

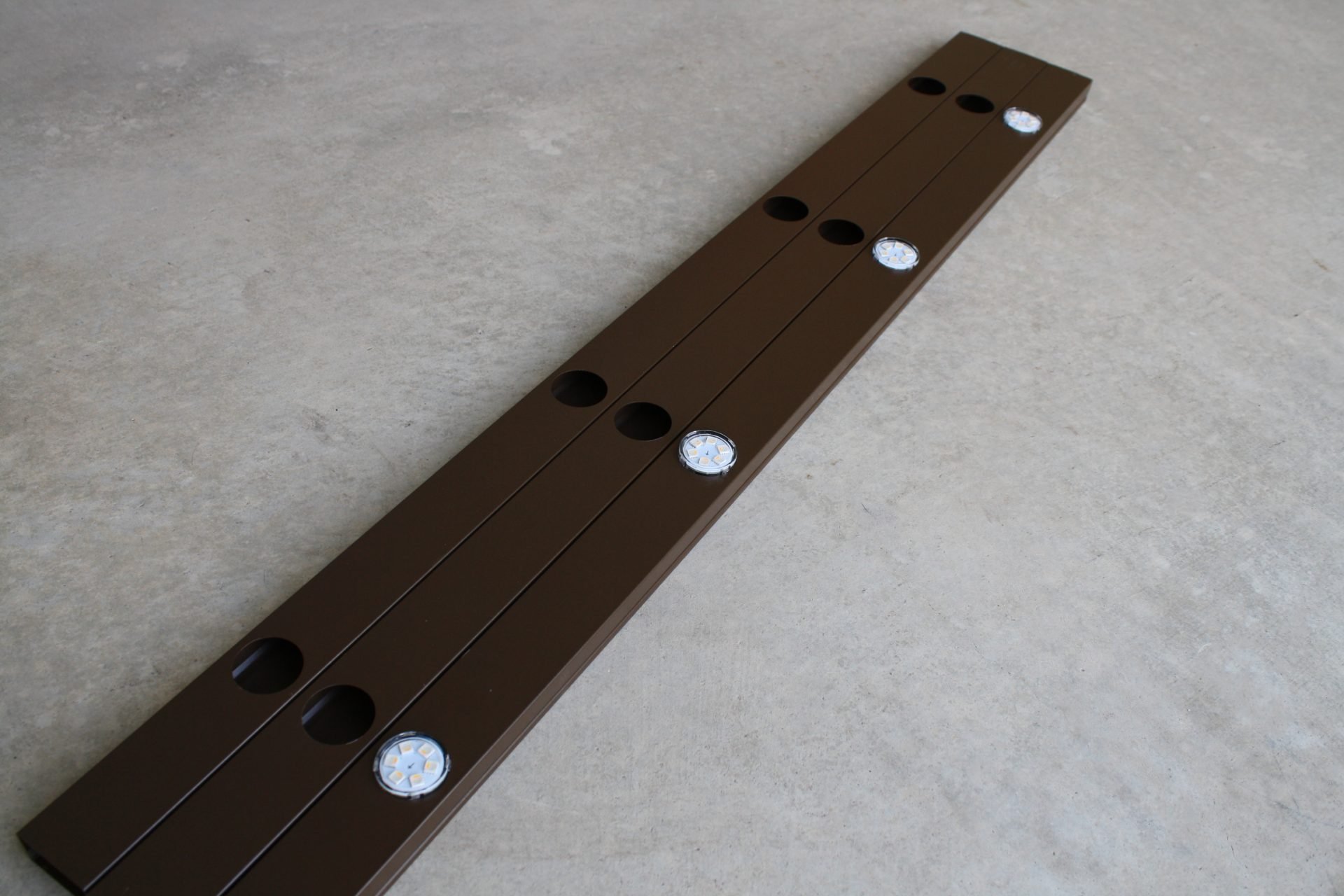

- Dark Brown (RAL 8014) - Mounting Method:
– Screw into soffit (facing downward)
– Screws not included - Two-Piece Design: Back piece mounts, front snaps on
How to install permanent outdoor lights
Installation is simple and can be finished in a weekend. Grab a friend, order some pizza, and get started.
Pro tip: Work in sections, test after each splice, and always unplug before wiring.
STEP 1

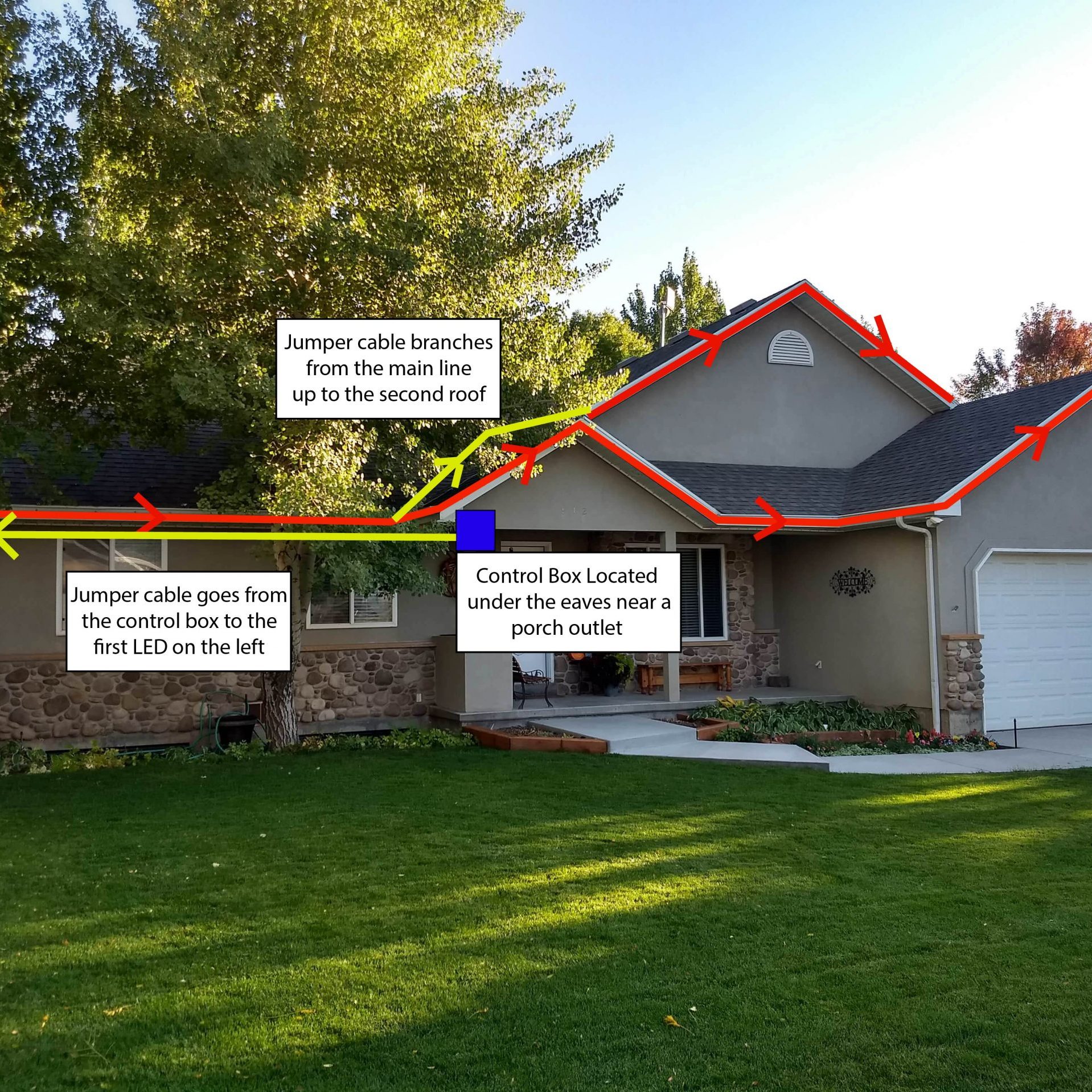

Plan Your Layout

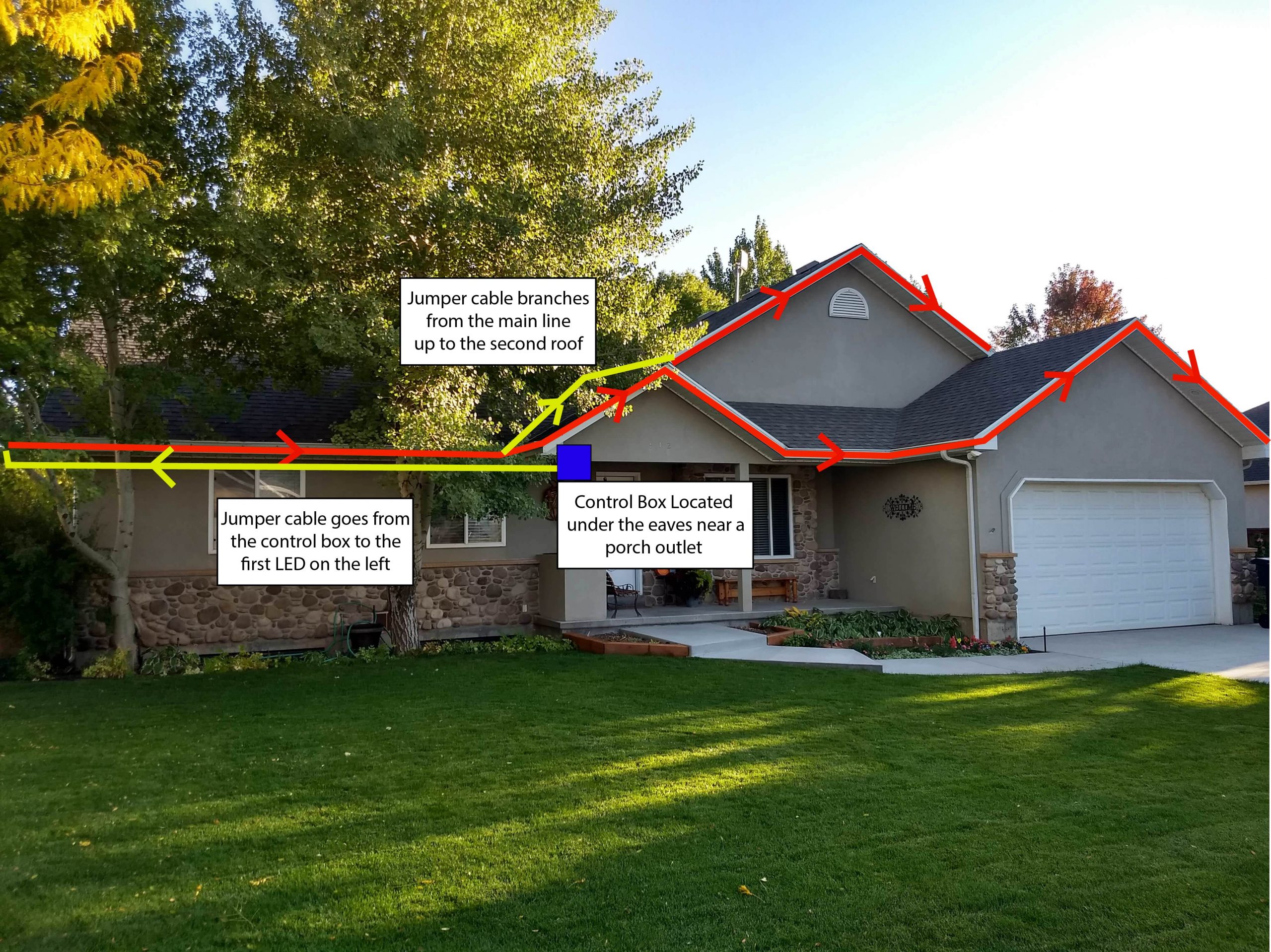

Decide where the controller goes, then map out LED runs, power points, and jumps.
STEP 2
Set Up the Controller

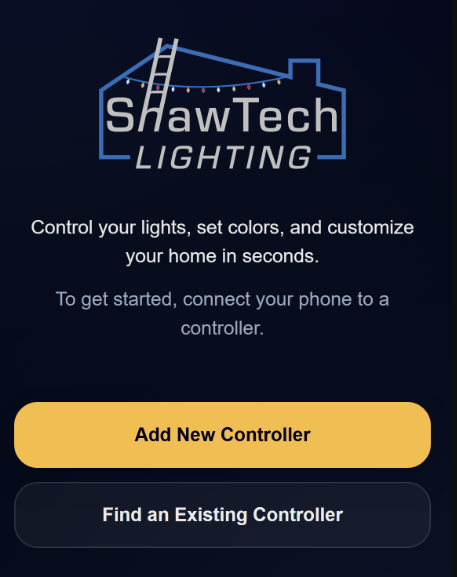

Mount the controller in a dry spot, plug it in, and connect with the ShawTech app.
STEP 3

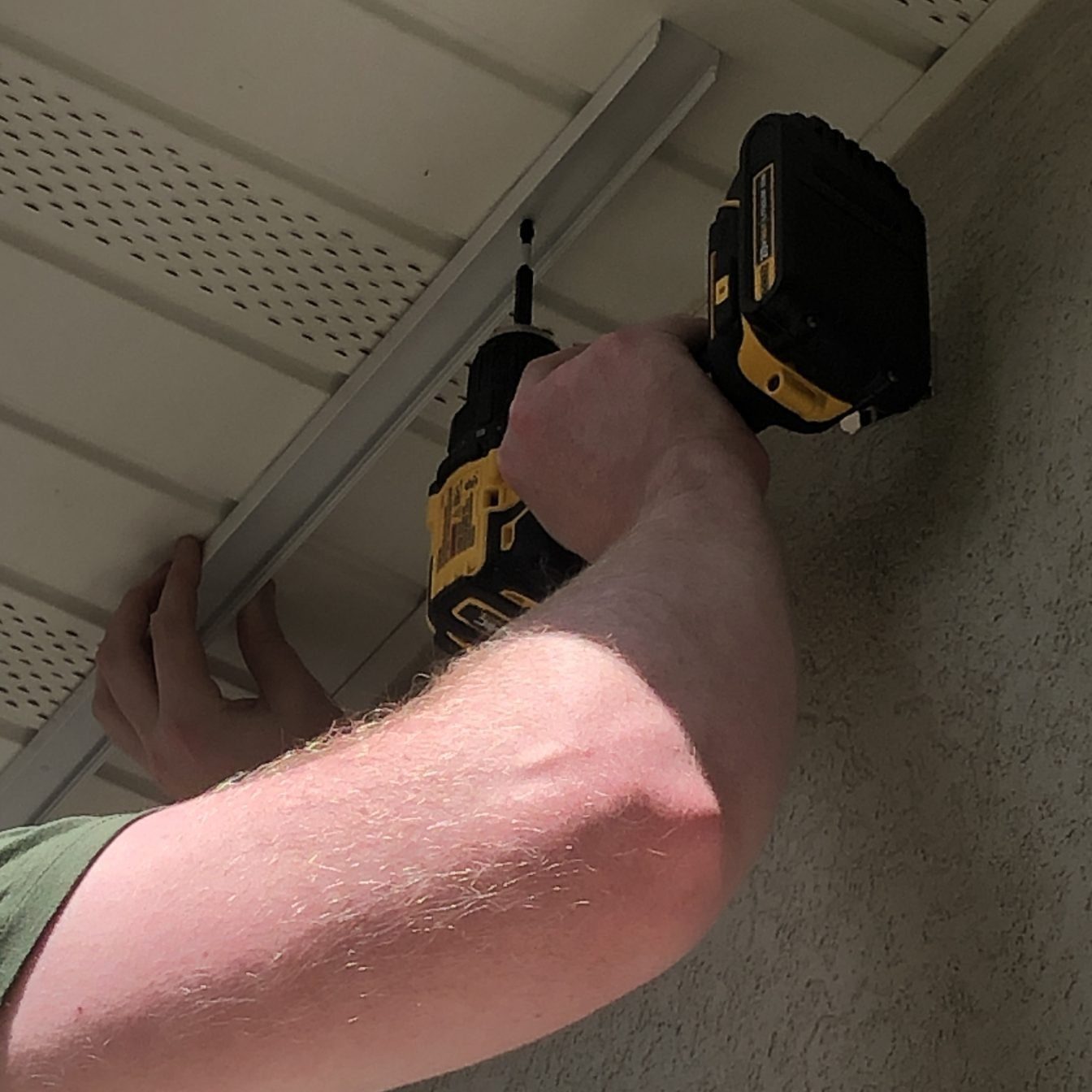

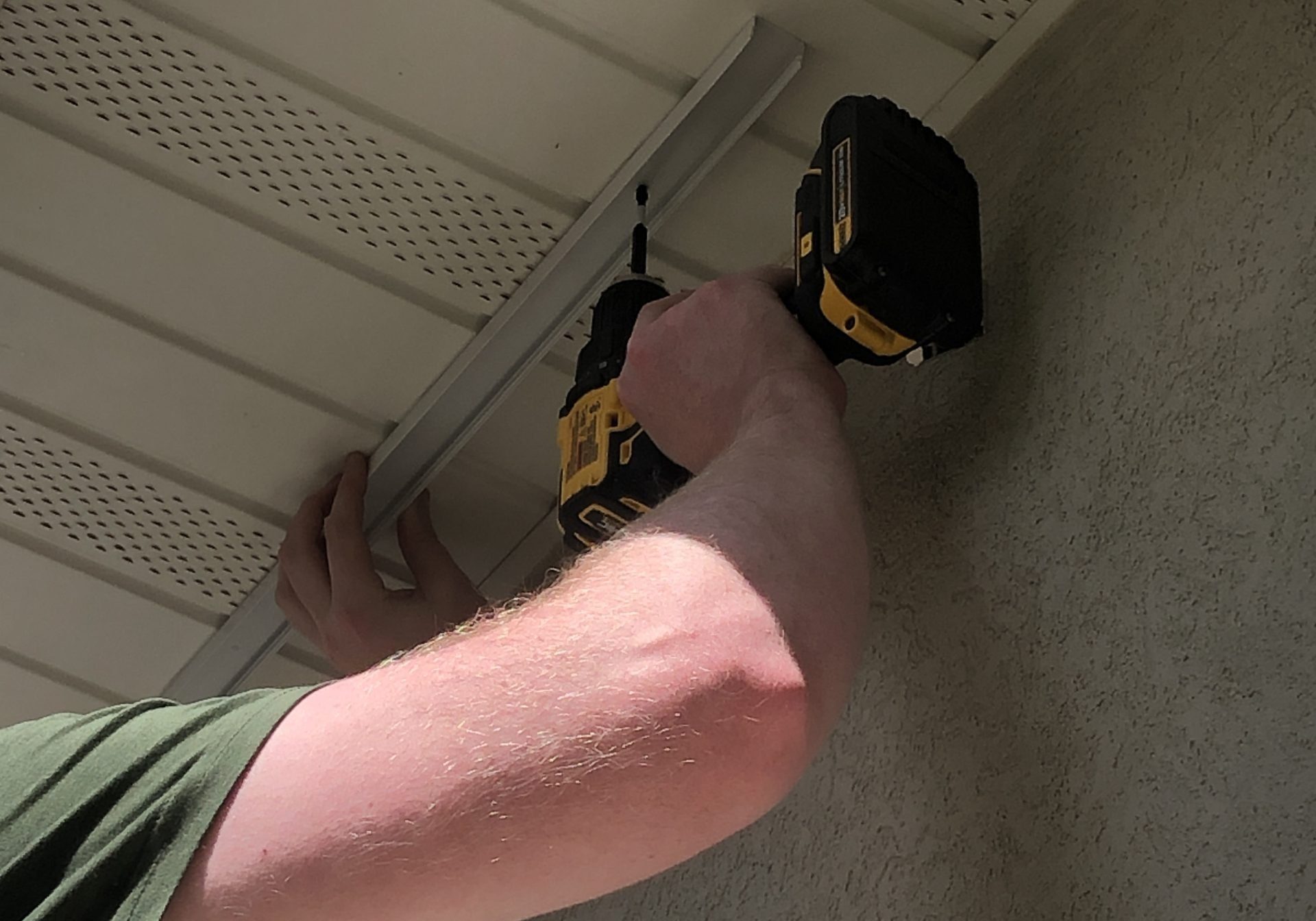

Mount the Channel

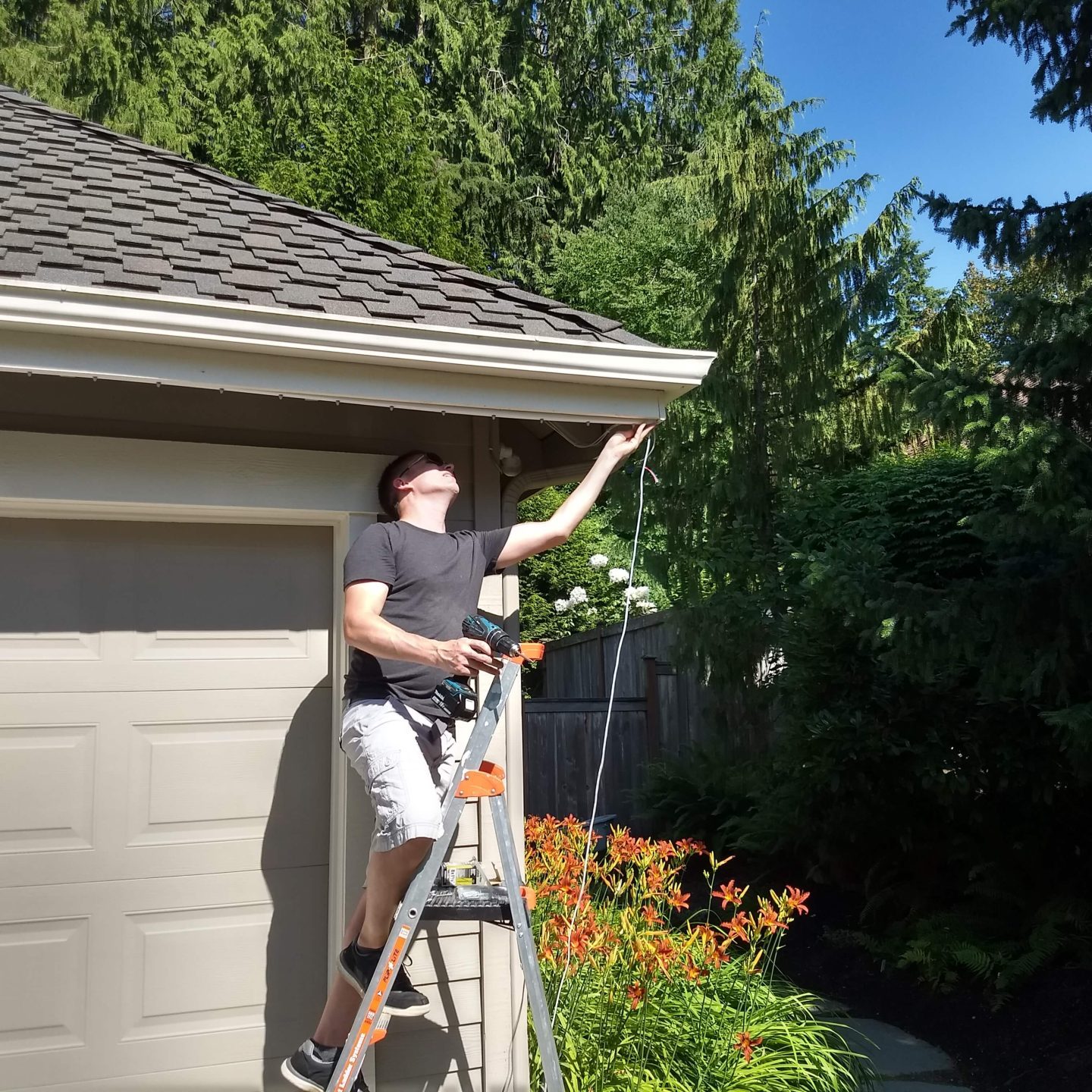

Screw the back channel to your soffit or fascia along your planned path.
STEP 4
Snap in LEDs
Insert LEDs into the front channel piece, then snap it onto the mounted back.
STEP 5
Wire the System
Connect LEDs to the controller, add power injection, and make your jumpers.
STEP 6
Test and Continue
Power on, test your LEDs in the app, then repeat the process for each section.
